What Architects Should Know About Tolerances and Print Fidelity in SLA Models
Introduction: Why Precision Matters in Architectural 3D Printing
In architectural model making, precision isn’t a luxury — it’s essential to communicating design intent. When translating a BIM or CAD model into a physical representation, even the smallest deviation can alter perception and accuracy. This is why understanding tolerances and print fidelity is critical, especially when working with SLA (Stereolithography) 3D printing.
SLA printing is favored in architecture for its ability to produce exceptionally fine detail and smooth surfaces. However, achieving this level of precision requires more than simply exporting a model and sending it to print. Architects must understand how tolerances and print fidelity influence the final outcome, from file preparation to post-processing.
This article explains what these terms mean, why they matter, and how architects can optimize their designs for accurate and high-quality SLA models.
1. Understanding Tolerances: From Digital Precision to Physical Reality
In 3D printing, tolerance refers to the acceptable deviation between the digital model’s dimensions and the physical print. While SLA printers are among the most precise on the market, capable of achieving resolutions as fine as 25–50 microns per layer, small variances are inevitable.
Typical Tolerances in SLA Printing
Dimensional tolerance: ±0.1–0.2 mm for small features
Shrinkage: Approximately 0.3–0.6%, depending on resin type and post-curing
Minimum wall thickness: 0.3–0.5 mm for stability
These differences may seem minimal, but at architectural scales — such as 1:100 or 1:200 — even a 0.1 mm deviation can affect how parts align or fit together. For example, when producing modular façades, window mullions, or interlocking roof sections, inadequate clearance can cause tight or uneven joins.
To avoid these issues, it’s best to design interlocking parts with a clearance of 0.1–0.3 mm, allowing for resin shrinkage and post-curing variations.
2. Print Fidelity: How Faithfully a Model Reflects the Design
If tolerance measures dimensional accuracy, print fidelity measures visual accuracy — how faithfully a model captures form, texture, and fine details. SLA technology excels here because its laser-based curing process produces crisp edges and smooth, detailed surfaces that mimic the digital model closely.
However, achieving high fidelity requires careful consideration of materials, orientation, and post-processing.
Resin Choice
Not all resins behave the same. Selecting the right one is key to balancing strength, detail, and appearance.
Standard resin: Best for conceptual or presentation models; easy to paint and finish.
Engineering resin: Ideal for functional prototypes requiring higher stability and impact resistance.
Clear resin: Great for transparent components like glazing or light studies, but prone to warping if over-cured.
Each resin has a unique shrink rate, so choosing the right material ensures both visual quality and dimensional accuracy.
Model Orientation and Supports
How a model is positioned during printing affects both accuracy and surface finish.
Horizontal planes may show more visible layer lines.
Vertical or angled orientations tend to produce cleaner surfaces.
Support placement must be strategic to avoid damaging visible areas of the model.
Collaborating with an experienced 3D printing team ensures the model is oriented to balance precision with aesthetics.
Post-Curing and Finishing
After printing, SLA models must undergo UV post-curing to reach full stability. Over-curing can lead to micro-shrinkage, while under-curing results in weaker structures. Proper curing, followed by light sanding and painting, helps maintain fidelity while enhancing presentation quality.
3. Where Fidelity Matters Most in Architectural Models
Architectural 3D printing is not just about producing physical miniatures; it’s about communicating spatial ideas with clarity. Certain applications demand especially high print fidelity and dimensional accuracy, including:
Façade studies: Reproducing detailed patterns, perforations, or textures.
Massing models: Maintaining proportional integrity across scales.
Interior studies: Ensuring accurate fit for stairs, partitions, or furnishings.
Lighting analysis: Using translucent or clear materials to study daylight behavior.
In these contexts, even small inaccuracies can distort perception, making tolerance and fidelity critical to design presentation.
4. How Architects Can Optimize Models for SLA Precision
Architects can significantly influence print outcomes by designing with SLA parameters in mind. The following best practices help ensure both precision and fidelity in your prints:
Simplify and Clean Geometry

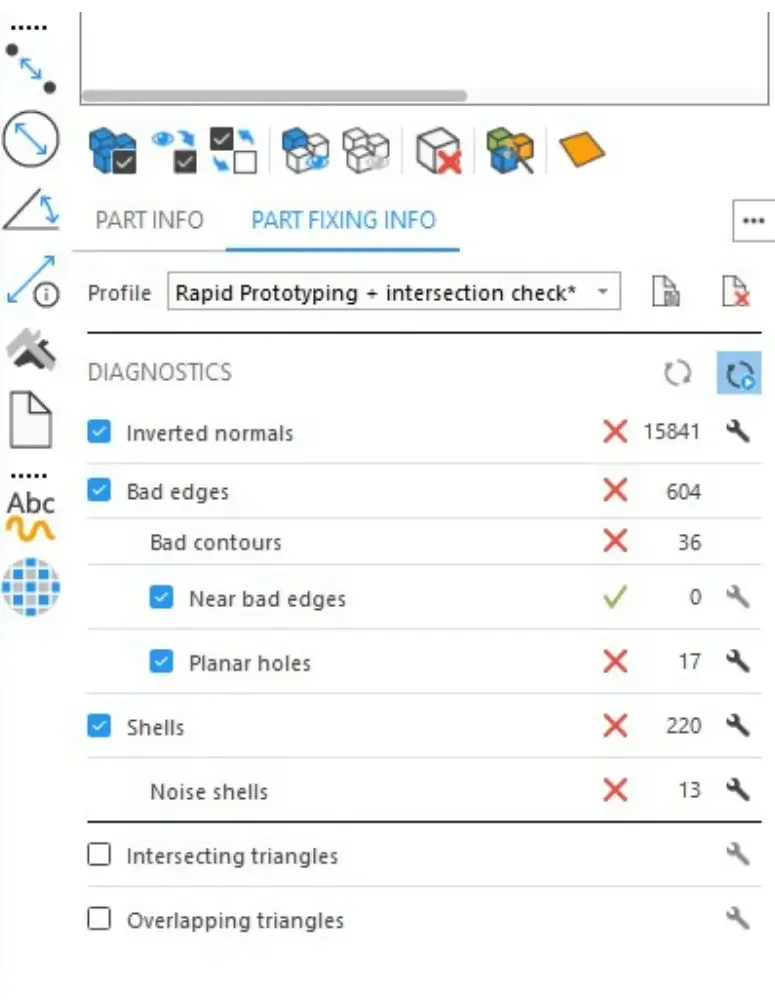

Architectural CAD and BIM files often contain excessive or hidden geometry. Removing internal surfaces, unnecessary lines, and tiny, non-structural elements reduces print errors and ensures a smoother slicing process.
Maintain Scalable Wall Thickness
At small scales, overly thin walls (below 0.3 mm) can warp or break. Reinforce delicate components like louvers, handrails, or façade fins to preserve readability and durability after curing.
Allow for Assembly Clearance
When designing models with multiple components, incorporate 0.1–0.3 mm gaps between parts to accommodate material expansion or contraction during curing and finishing.
Plan for Post-Processing
Add subtle features, such as alignment pins or notches, to guide assembly and ensure precision after painting or sanding. This approach minimizes errors introduced during manual finishing.
Collaborate with Your Model Maker
Early collaboration with a professional model-making team can prevent common pitfalls such as incompatible file formats or unsupported geometries. Sharing your project intent — whether for presentation, competition, or client display — allows experts to tailor settings for optimal results.
5. Why SLA Is Ideal for Architectural Precision
Compared with other 3D printing methods, SLA offers distinct advantages for architectural applications:
Superior resolution (up to 25 microns per layer) for high-detail modeling.
Smooth, paint-ready surfaces ideal for presentation and display.
Tight dimensional tolerances suitable for multi-part assemblies.
High visual fidelity that accurately reflects the original digital design.
This makes SLA the preferred choice for architects who value realism, accuracy, and fine craftsmanship in their physical models.
Conclusion: Designing with Precision in Mind
For architects, understanding tolerances and print fidelity is about more than just technical precision — it’s about ensuring that the physical model faithfully communicates the design’s intent.
A well-prepared SLA print bridges the gap between digital visualization and tangible form. By anticipating how materials behave, incorporating clearance for tolerances, and choosing resins carefully, architects can achieve models that are both visually stunning and dimensionally accurate.
The result is a model that tells the truth about your design — a perfect balance between art, technology, and engineering.
